The Bridge was built on a very modest budget. I was able to reuse some audio equipment I already had available to keep costs managable. I chose economical components from well known manufacturers to ensure decent performance yet stay within budget. Over time, I am upgrading most of the components as funds and technology permits.

Digital Projector:
Latest Upgrade: The theater now has a Pro Cinema 4050 4K PRO-UHD Projector with Advanced 3-Chip Design and HDR.

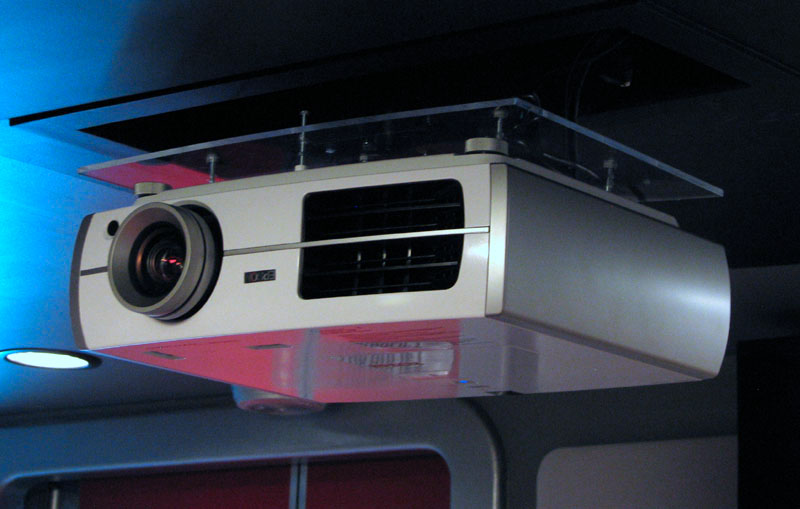

Photo of the Epson Pro Cinema 4050 mounted inverted on the ceiling.

Previous Projectors:

The theater was upgraded on October 27, 2010 with an Epson Home Cinema 8350 Projector. This Epson is a full HD (1920x1080) 3 LCD unit. This projector cost about 1/3 of the Sony's original purchase price.

Photo of the Epson 8350 mounted inverted in the theater:

The original projector in the theater was a Sony VPL-HS20 (720P) installed on November 27, 2003.

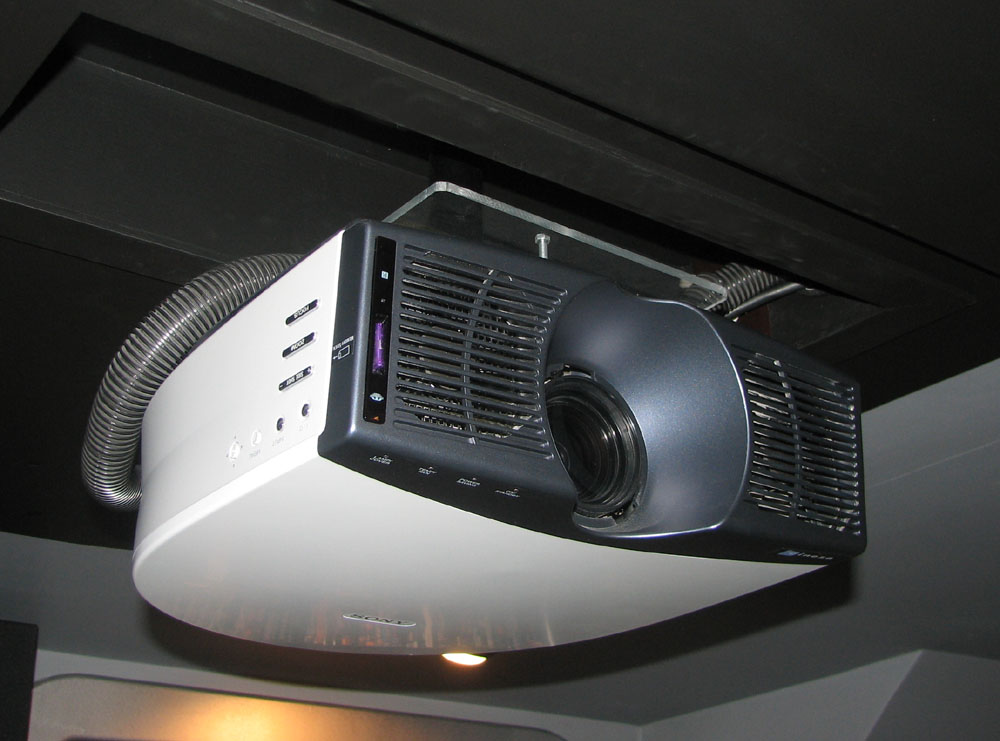

Photo of the previous Sony projector mounted inverted in the theater:

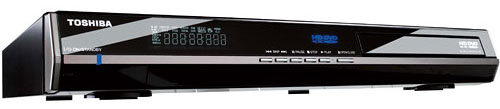

Blu-ray HD Playback:
In December 2010, I acquired an Oppo BDP-93 Universal Network 3D Blu-Ray Player to replace my Panasonic DMP-BD35 player.

Audio System:
As of 2020, The Bridge uses a Denon AVR-S750H receiver, a 7.2 channel full 4K Ultra HD AV receiver with 165W per channel (6 ohms, 1 kHz, THD 10%, 1ch driven), Dolby Atmos®, Dolby Atmos Height Virtualization Technology, DTS:X™, DTS Virtual:X®, new eARC support, HDMI (6 inputs/ 1 output), Wi-Fi, Bluetooth and HEOS Built-in wireless multi-room music streaming and voice control compatibility .

Previously the theater had a 7.1 channel Yamaha RX-V1600 Dolby Digital EX, THX Select2 Surround Sound Receiver (120 watts x 7 channels) as the main audio component.

For speakers I use 3 Polk CSi-130's for the front and center channels, a pair of Polk FXi/50's for the surrounds and a pair of Polk RT15i's for the rear channels. The powered subwoofer is a Velodyne CHT-12.

Tactile Transducers:
A Bass Shaker Pro is installed under each of the front row seats to augment the subwoofer. They are powered by a Dayton SA100 100W Subwoofer Amplifier.


HDTV Feed
The cable box has been upgraded as of 2020 to a new FiOS TV One system.

Lighting:
In 2014 I replaced all of the X10-based lighting controls with Insteon-based units. Here is the master lighting control panel which contains 3 of the four control units used in the theater. The fourth control is near the media library for easy access. The Insteon system allows me to program the various dimmers and switches to achieve multiple lighting effects, everything from all lights on to all light off and several combinations in between.

Screen:
To save money, I have constructed all of the screens myself. I built three different versions, the first, a 100" diagonal 16:9 wooden frame and "blackout cloth" screen; the second, a 102" diagonal 16:9 with an aluminum frame and a matte white vinyl screen; and the third and current screen a 125" diagonal 2.35:1 widescreen (see photo below). For details on the building of the first two screens, visit my DIY Projects Page.

Remote Control

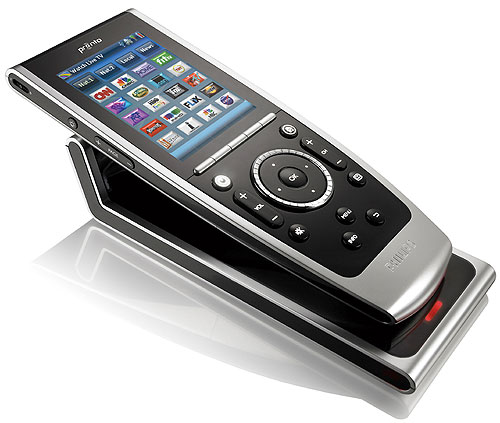

For the theater remote control I chose the Philips Pronto TSU9400 (Philips has since departed the remote control business). This is a color touch screen remote with multiple hard buttons. A key feature is that it can be programmed and the user interface designed using your PC. The benefits to me are that I can put just what buttons I need on the primary screens and leave the others elsewhere. Also, with my aging eyes, I can design the buttons so I can read them without reading glasses, a problem with many other remotes. The hard buttons allow quick access to common functions such as volume, channel, mute, devices, etc. without having to look at the touch screen.

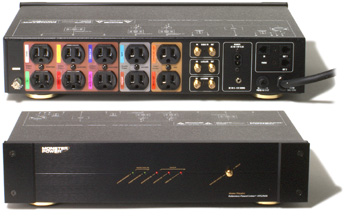

Power Conditioning:

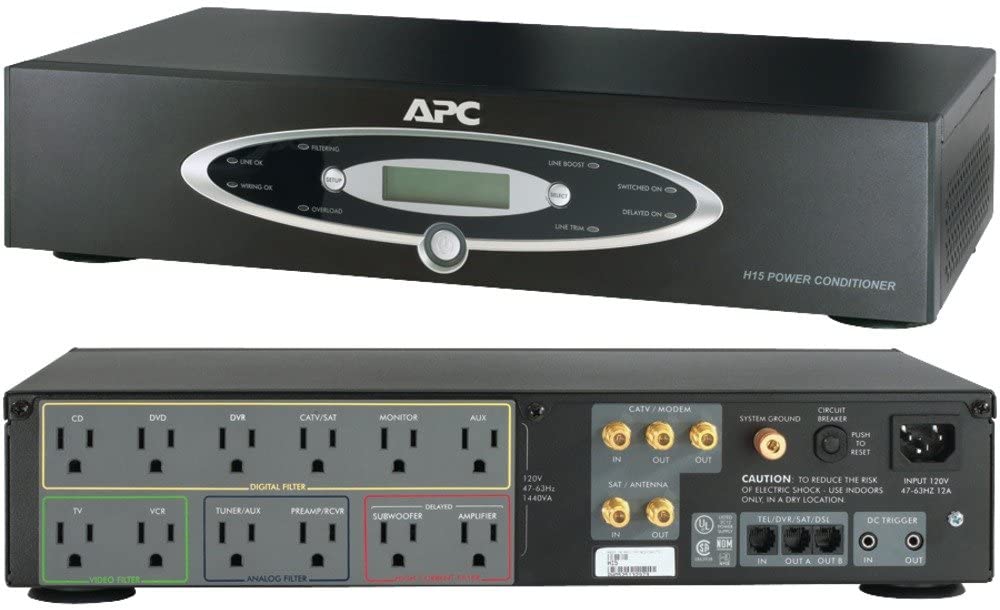

For power conditioning I utilize an APC H15BLK. It provides power to the equipment in the rack as well as the projector.

IR Distribution:
For IR distribution (to get the remote control to work the stereo when the units are located behind and to the side of where you sit) I again chose www.smarthome.com and their IR distribution equipment. It turned out to be relatively inexpensive and provides just the features I was looking for.

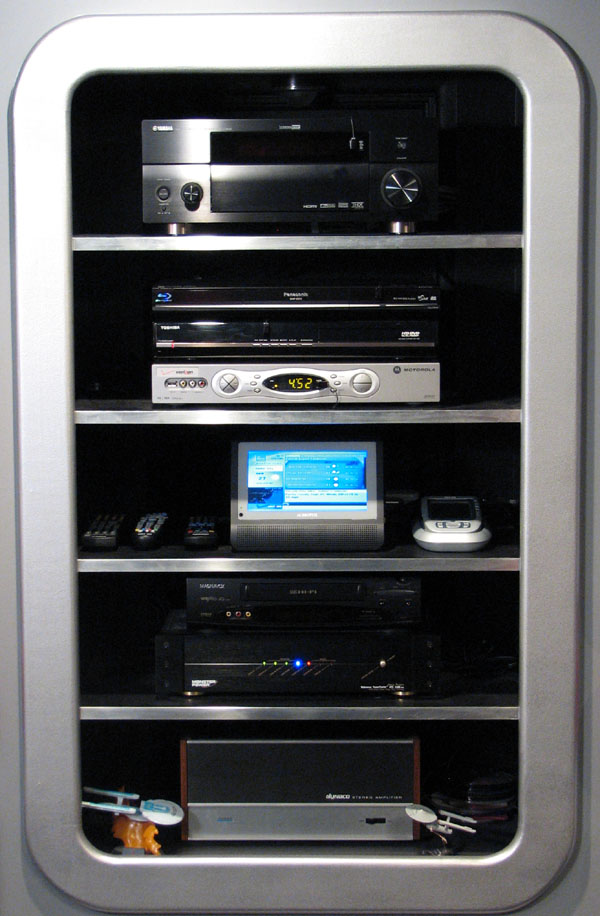

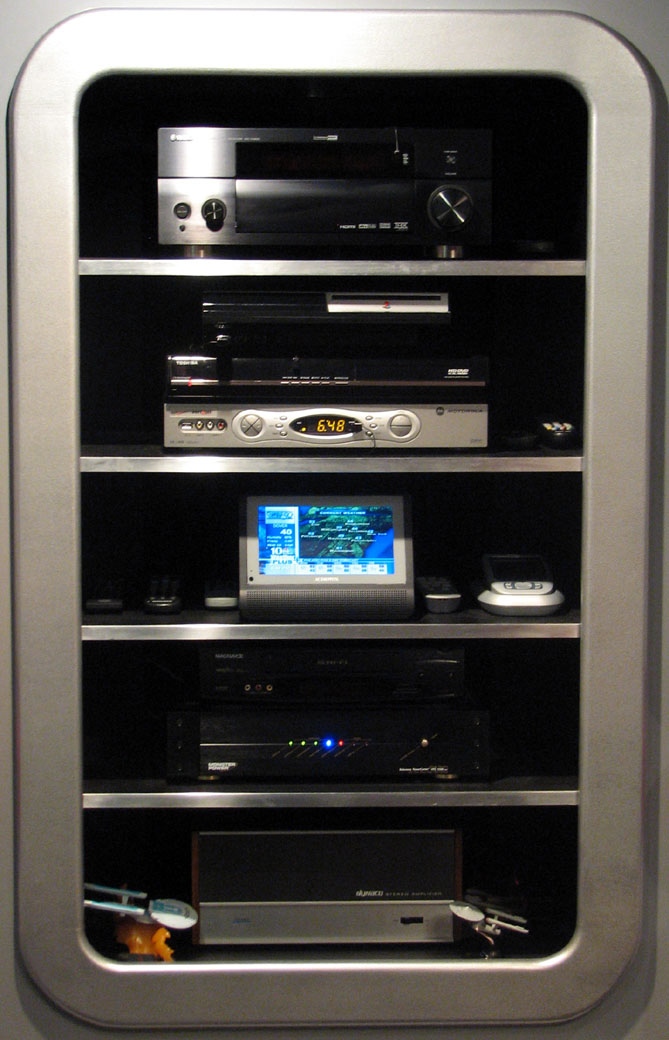

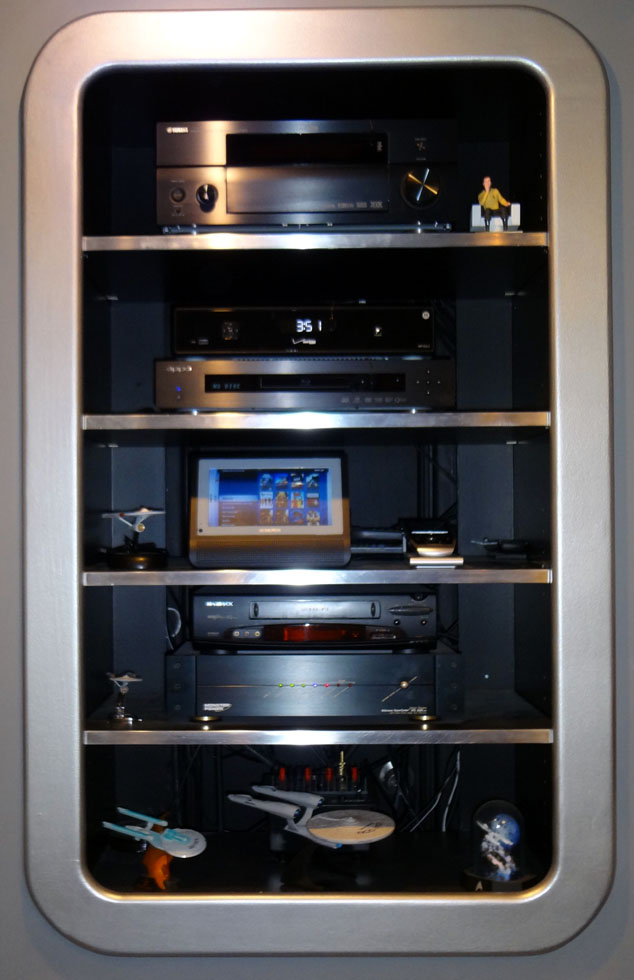

Click on the thumbnail below to see a photo of the above listed equipment on the shelves in the theater as of 2021.

So what does it all look like when it's done? Read on...
